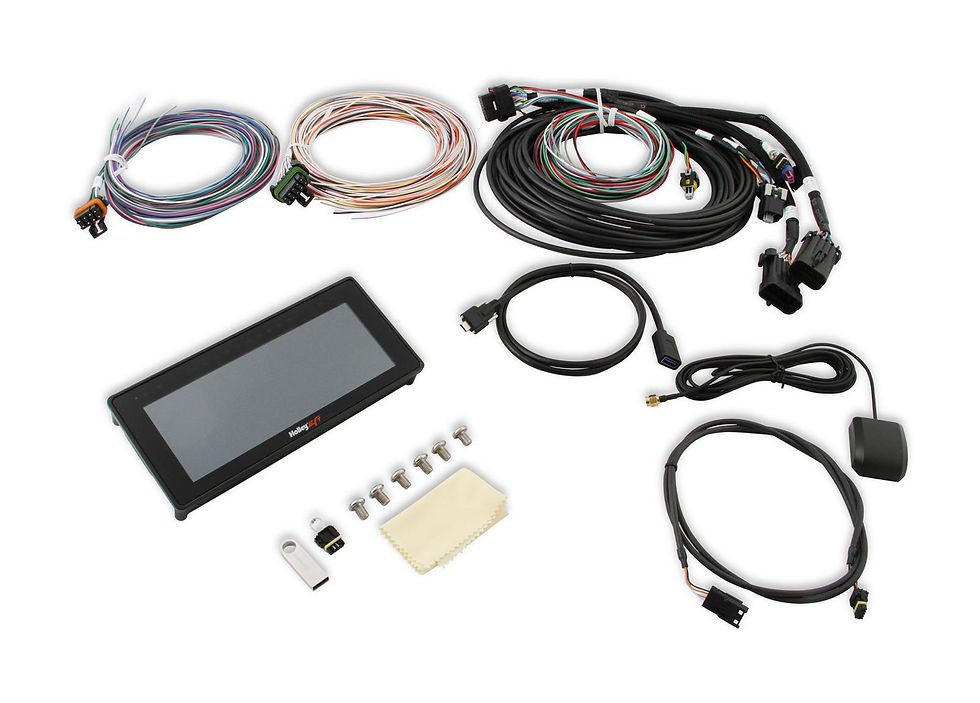

Digital Dashboard Displays, Holley EFI, 6.86 in. Digital Pro Dash, Standalone, Touch Screen, Aluminum Case, Built-in GPS, Odometer, Data Logger, Kit
Brand:
Holley
Manufacturer's Part Number:
553-117
Part Type:
Digital Dashboard Displays
Product Line:
Holley EFI Digital Pro Dash Standalone Kits
Summit Racing Part Number:
HLY-553-117
UPC:
090127104736
Display Type:
LED
Display Customizable:
Yes
Display Housing Material:
Aluminum
Display Housing Color:
Black
Mounting Hardware Included:
Yes
Wiring Harness Included:
Yes
Wiring Harness Terminated:
Yes
OBD II Compatible:
Yes
WiFi Compatible:
No
Remanufactured:
No
Quantity:
Sold as a kit.
Notes:
No ECU or fuel injection required.
Holley EFI Digital Pro Dash Standalone Kits
Upgrade to Holley EFI Standalone Digital Pro Dash kits and get the facts on your engine! They offer two versions--both are full of features that support most any users, install almost anywhere, and just like traditional gauges install in almost anything. Holley's 6.86 in version actually measures 3.5 in. tall x 7.6 in. wide, is easily mounted in a console/dashboard, off a roll cage, or on a steering column, and includes a 10 LED shift light. The larger 12.3 in. version is for hard-core enthusiasts who want the ultimate display device, and measures 11.5 in. wide x 4.25 in. tall.

Holley EFI Standalone Pro Dash units feature:

* Standalone digital dashes--no ECU or fuel injection required
* High resolution, state-of-the-art, multi-gauge touch screen display with fully configurable layouts:
-- Full color, capacitive touch screen with auto dimming for crystal clear data--day or night
-- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
-- Virtual switch panel eliminates the need for external toggle switches
-- 16 default background skins pre-loaded with unlimited options for importing custom layouts
-- Built-in GPS with speed, odometer and trip odometer function (external antenna included)
-- Rendered analog (dials/needles) and digital gauge styles available
-- Integrated datalogger
-- Rugged, water-resistant case constructed of cast aluminum for long life and durability
* Plug-and-play features are pre-configured in the harness and include dash layouts/screens for:
-- Oil and fuel pressure, coolant and air temperature (utilizes plug-and-play Holley sensors, not included)
-- Turn signals, high beam, fuel level, engine vacuum/boost
* Additional input and output functionality:
-- 13 multi-configurable inputs
-- 4 ground switched outputs
-- 4 speed channels (two dedicated) for rpm, driveshaft speed, or any other Hall effect speed input
-- User definable channel alarms and warnings
* Communications/harness:
-- 4-pin wiring harness contains power, ground, and CANbus connections
-- Holley EFI CANbus connection for expanded capability with Holley EFI systems
-- Expandable storage via USB
* Integrated datalogger:
-- Internal log memory of 1GB (expandable up to 32GB with addition of micro-SD card)
-- External logging to USB flash drive is also available for easy file management
-- On-screen datalog playback allows you to review vital run information right on the dash
-- Full analysis via laptop is available. Simply download the file to a USB drive and view with the free datalog viewer at Holley.com
* Flexible mounting options: Surface or flush mounting—high-quality hardware included
* Simple setup and programming: USB keyboard and mouse functionality
* Fully upgradeable
* Both dash versions include harness/cables, mounting hardware, USB memory stick, and CAN terminator
* GPS antenna
* Sensors not included
