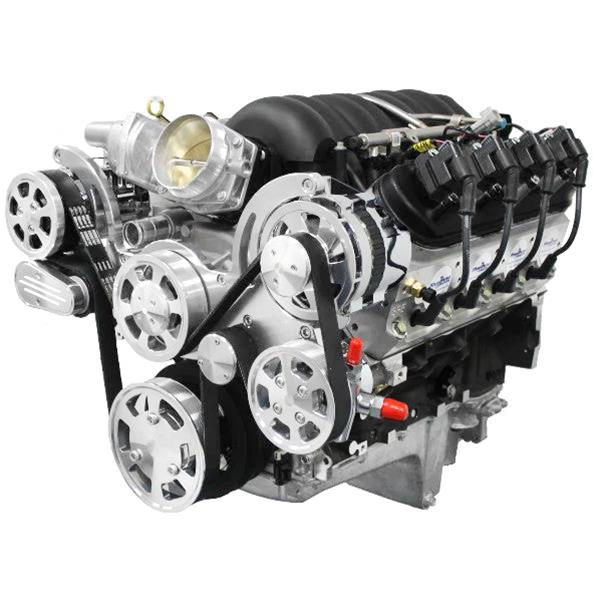

Crate Engine, Fully Dressed Long Block, GM LS Series 376 C.I.D., Internal Engine Balance, Aluminum Cylinder Heads, Chevy, 6.2L LS, Each
Brand:
BluePrint Engines
Manufacturer's Part Number:
PSLS3763CTFK
Part Type:
Crate Engines
Product Line:
BluePrint Engines Pro Series Chevy LS 376 C.I.D. 530 HP EFI Base Dressed Long Block Crate Engines
Summit Racing Part Number:
MLL-PSLS3763CTFK
UPC:
00887753979513
Crate Engine Family:
Chevy LS
Actual Engine Displacement:
6.2L/376
Crate Engine Cylinder Head Material:
Aluminum
Engine Block Material:
Cast iron
Advertised Compression Ratio:
10.7:1
Assembled:
Yes
Engine Balance:
Internal
Cam Style:
Hydraulic roller, OE roller
Rear Main Seal Style:
1-piece
Intake Manifold Included:
Yes
Intake Manifold Style:
Fuel Injection
Cylinder Heads Included:
Yes
Carburetor Included:
No
Throttle Body Included:
Yes
Distributor Included:
No
Oil Pan Included:
Yes
Valve Covers Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
Yes
Harmonic Balancer Included:
Yes
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
Yes
Spark Plug Wires Included:
Yes
Computer Included:
Yes
Wiring Harness Included:
Yes
Stall Speed Rating RPM Range:
2,200-3,200
Supercharger Included:
No
Remanufactured:
No
Quantity:
Sold individually.
Notes:
Includes a polished accessory drive pulley kit.
Special Attention:
Includes Holley Terminator X Max Gen IV complete EFI engine management system, harness, pedal, harness, sensors, throttle body, intake, injectors, and fuel rails.
BluePrint Engines Pro Series Chevy LS 376 C.I.D. 530 HP EFI Base Dressed Long Block Crate Engines
BluePrint Engines provides a Dyno Promise with results and bragging rights. They make sure they hit their target horsepower and proper torque with every crate engine, utilizing an advanced computerized balancer to get rotating assemblies within 2 grams, ensuring silky smooth power over the entire rpm range. According to BluePrint, that's precisely why their engines sound and run better than the competitors.

Accompanying your BluePrint Engines Pro Series Chevy LS 376 c.i.d. 530 hp EFI base dressed long block crate engine will be a comprehensive, dyno-generated printout showing its critical specs. No more guessing what the real-world peak horsepower and torque ratings are. Any doubters in the crowd? Simply flash them your dyno results! These long block engines are available with or without complete engine controller with ECU, harness, throttle pedal, and sensors. Select the one you want.

BluePrint Engines Pro Series Chevy LS EFI base dressed engine:

* Horsepower and torque: 530hp/495 lb.-ft.
* Compression ratio: 10.7:1
* BluePrint Engines LS3 aluminum cylinder heads
-- 69cc chamber
-- 2.165 in. intake/1.590 in. exhaust valves
-- 259cc intake/102cc exhaust runners
* Hydraulic roller camshaft:
-- .612 intake/.585 exhaust lift
-- 225 intake/238 exhaust duration at .050 in.
-- 113-degree lobe separation angle
-- 3-bolt cam
* Nodular iron crankshaft
-- 3.622 in. stroke
-- 6.125 in. connecting rods with 150,000 psi bolts
* Hypereutectic pistons
* BluePrint Engines high-strength cast iron 6.2L block
-- Increased deck thickness and strength webbing
-- Extended cylinder skirt
-- Priority main oiling
-- 4.0662 in. bore
-- 6-bolt main
-- 1-piece rear main seal
-- Improved water jacket design
-- Utilizes OEM LS3 front and rear covers
* LS swap oil pan
* Harmonic balancer (Short Corvette style)
* DBW throttle body
* Available with a GM plastic or fabricated intake manifold
* Fuel injectors and rail
* Coil packs
* Spark plugs and wires
* Water pump
